- Air-driven, manually operated
- Large test room
- EasyLogging creates instant test certificate
TB-STD 1300 & 2300

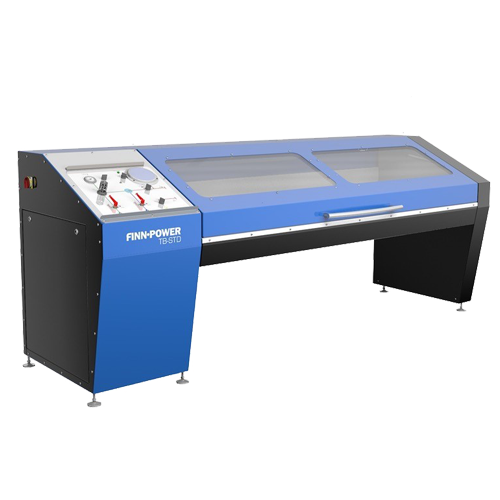

Finn-Power TB-STD 1300 & 2300 are air-driven, manually operated production test benches with water as the test medium.
The TB-STD range brings world class safety to the workshop test bench category with stainless steel testroom, double walls, 12 mm safety glass and Quick stop,
and offer a large test room with an adjustable turntable return test connection.
EasyLogging creates instant test certificate after each test.
Standard Features
| Standard Features | Options |
|---|---|
| Air-driven pump with start/stop | Extra gauge 0 – 250 bar |
| Test fluid inlet valve and inlet filter | (TB033.009) |
| Quick stop (opens bleed valve and stops the pump) | QuickConnect ‘Exchange’ QCE |
| Pressure regulator | 1000 (TB122.001) |
| Air and high pressure gauge | QuickConnect ‘Exchange’ QCE |
| Bleed valve | 2000 (TB123.001) |
| Isolate valve | Manifold set for 4 hoses |
| SoftBleed (de-energizer) | QCM 4×1/2” BSP (F) |
| Adjustable turntable return test connection | (TB148.001) |
| EasyLogging Instant Reporting* | Fast filling (TB141.002) |
| Laptop holder | Other language than |
| Test adapter: 2 pcs. 1 1/8”-12UNF-HP (M) to 1/2” BSP (F) (TB361.000.133) | standard (TB104.002) |
* Including pressure sensor 0 – 1 500 bar with accuracy of +/- 0,25% for full scale with calibration certificate. EasyLogging includes one year free software licence fee
* Note, BSP thread pressure rating is max. 1000 bar.
Technical Data
| Description | TB-ECO |
|---|---|
| Test Connection | 1 1/8”-12UNF HP (F) |
| Testroom | Stainless steel |
| Pressure range (bar/psi) TB-STD 1300 | 135 – 1 300 / 1959 – 18854 |
| Pressure range (bar/psi) TB-STD 2300 | 180 – 2260 / 2611 – 32 778 |
| Flow (lpm/cuim @ 0 bar) TB-STD 1300 | 1.4 / 85.0 |
| Flow (lpm/cuim @ 0 bar) TB-STD 2300 | 1.0 / 61.0 |
| Test pressure gauge (bar/psi) TB-STD 1300 | 0 – 1 600 / 0 – 25 000 |
| Test pressure gauge (bar/psi) TB-STD 2300 | 0 – 2 500 / 0 – 36 250 |
| Test medium | Water from tap |
| Max hose length | Depends on bend radius |
| Door operation | Manual with gas springs |
| Door locking | Air driven |
| Incoming air pressure min. | 7 bar to reach max test pressure |
| Dimensions | LxWxH |
|---|---|
| Test Area (mm)) | 2500x890x270 (front) 510 (back |
| Test Area (inches) | 98.4×35.0x10.6 (front) 20.1 (back) |
| External (mm) | 3280x1000x1330 |
| External (inches) | 129.1×39.4×52.4 |
| Weight | Kg/LBS |
| Approx. | 870 / 1918 |
