- Lightweight, portable construction
- Efficient, fast pump
- Impressively high crimping force
- Reliable crimper for field service

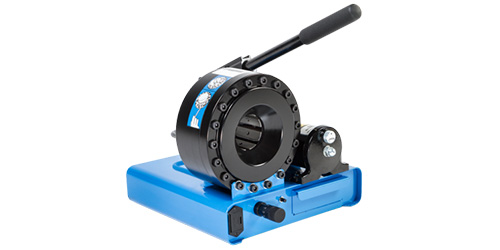

Finn-Power P16HP
Hose size up to 1”
Crimping Range – Up to 45mm
95 tons of crimping force
Finn-Power’s portable crimping machines are designed for field service when repairs must be made on-site. Finn-Power’s service machines are simple and straightforward in construction, easy to operate, and highly reliable. The very light weight of Finn-Power’s service machines allows the portable units to be easily carried to any location
The P16 HP is a manually operated hydraulic crimping machine for one-off production of hose assemblies e.g. in repair shops. This hand-operated machine works even in places where electric current is not available. After removing the battery of the crimping diameter dial, the machine is also suited for operation in conditions where electric appliances cannot be used due to danger of explosion. Thanks to its lightness, the crimping machine suits especially well to travelling mechanics.
Standard Inclusions
Integrated control Unit
Technical Data
| Description | P16HP |
|---|---|
| Crimping Range Ø (mm) ₁ | 10-45 |
| Max. crimping force (kN) | 955 |
| Hose size ID (inch) | 1 |
| Die Set ₂ | P16 |
| Max. opening (mm) ₃ | +20 |
| Master die D/L (mm) | 39 / 64 |
| Control | Manual |
| Operation | Hand Pump |
| Size: Length (mm) | 331 |
| Size: Width (mm) | 401 |
| Size: Height (mm) | 271 |
| Weight incl. oil (kg) | 26 |
Key:
- With standard dies. Crimping range can be increased with special dies.
- See table for standard die set data
- Maximum opening is the total die travel. Add this value to the minimum crimping diameter of the die set used. The result is the maximum opening of the machine with die set in place.
Standard Die Sets
| Part Number | Crimping Range (mm) | Length (mm) |
|---|---|---|
| 18212/10 | 10.0 – 12.0 | 55 |
| 18212/12 | 12.0 – 14.0 | 55 |
| 18212/14 | 14.0 – 16.0 | 55 |
| 18212/16 | 16.0 – 19.0 | 55 |
| 18212/19 | 19.0 – 23.0 | 55 |
| 18212/23 | 23.0 – 27.0 | 55 |
| 18212/27 | 27.0 – 31.0 | 65 |
| 18212/31 | 31.0 – 38.0 | 65 |
