- Lightweight, portable construction
- Efficient, fast pump
- Impressively high crimping force
- Reliable crimper for field service

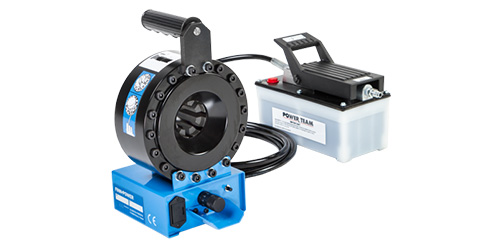

Finn-Power P16APZ
Hose size up to 1”
Crimping Range – Up to 45mm
95 tons of crimping force
Finn-Power portable crimping machines are designed for field service when repairs must be made on-site. Finn-Power service machines are simple and straightforward in construction, easy to operate and highly reliable. The Finn-Power service line has selection of power packs from hand pump, air over hydraulic to battery operated solutions for finding the best fit to solve the service need. Finn-Power service line machines are also easy to carry to any location because of their light weight and portability
Finn Power’s portable P16 APZ is designed for field service when repairs must be made on-site. It is easy to operate and highly reliable.
P16 APZ is easy to use in locations with compressed air available. Compact size allows flexible work in difficult and tight spaces. This service machine is light in weight so it can be easily carried to any location. Crimping unit can be used in different positions and the hydraulic unit can be used either with a hand or a foot.
Standard Inclusions
Integrated control Unit
Technical Data
| Description | P16APZ |
|---|---|
| Crimping Range Ø (mm) ₁ | 10-45 |
| Max. crimping force (kN) | 955 |
| Hose size ID (inch) | 1 |
| Die Set ₂ | P16 |
| Max. opening (mm) ₃ | +20 |
| Master die D/L (mm) | 39 / 64 |
| Control | Manual |
| Operation ₄ | Air pressure |
| Size: Length (mm) | 331 |
| Size: Width (mm) | 346 |
| Size: Height (mm) | 271 |
| Weight incl. oil (kg) | 28 |
Key:
- With standard dies. Crimping range can be increased with special dies.
- See table for standard die set data
- Maximum opening is the total die travel. Add this value to the minimum crimping diameter of the die set used. The result is the maximum opening of the machine with die set in place.
Standard Die Sets
| Part Number | Crimping Range (mm) | Length (mm) |
|---|---|---|
| 18212/10 | 10.0 – 12.0 | 55 |
| 18212/12 | 12.0 – 14.0 | 55 |
| 18212/14 | 14.0 – 16.0 | 55 |
| 18212/16 | 16.0 – 19.0 | 55 |
| 18212/19 | 19.0 – 23.0 | 55 |
| 18212/23 | 23.0 – 27.0 | 55 |
| 18212/27 | 27.0 – 31.0 | 65 |
| 18212/31 | 31.0 – 38.0 | 65 |
